Autel MaxiIM KM100 Kit | 2026 Autel Universal Key Programming & IMMO Tool with/ 5 Universal Smart Keys | NASTF SDRM READY

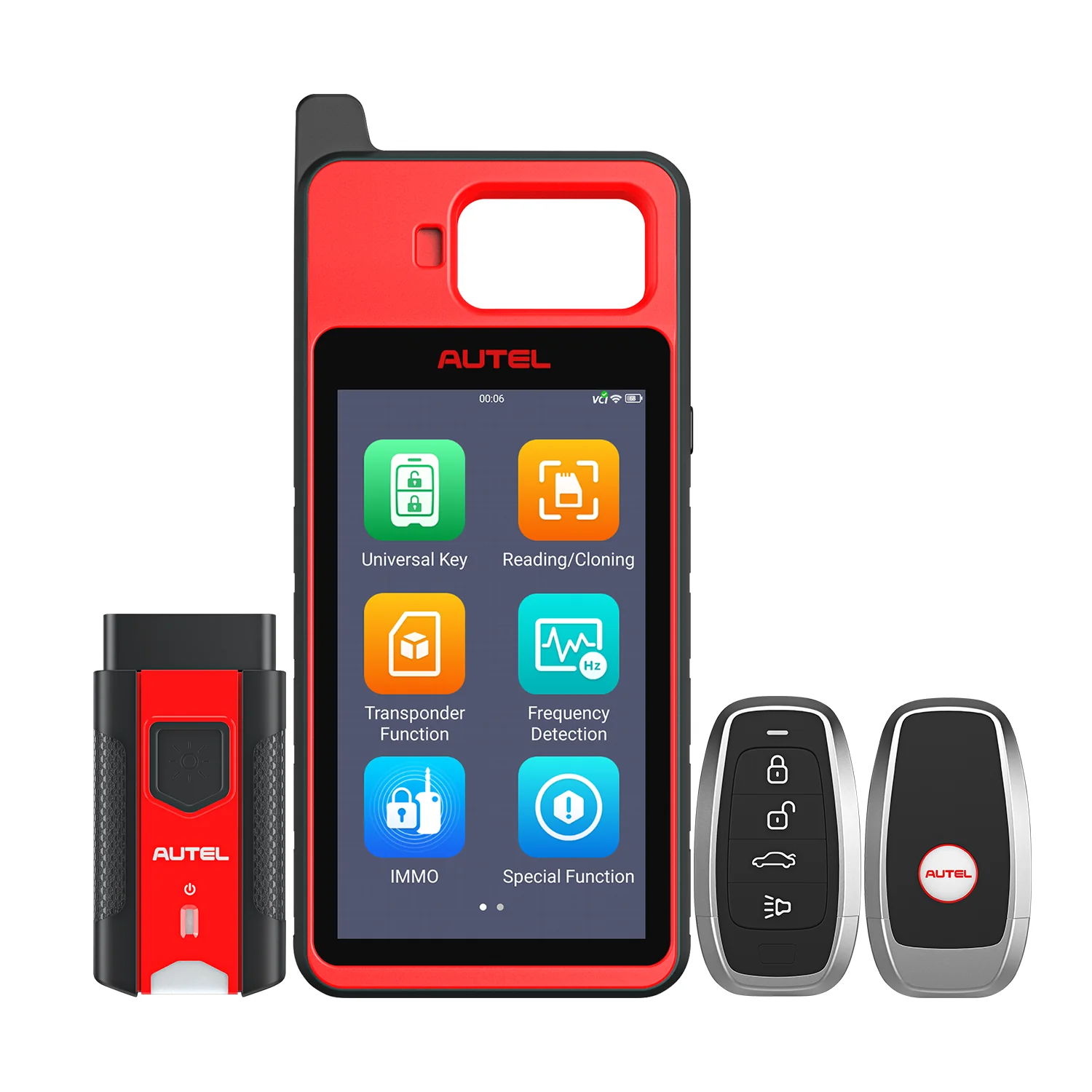

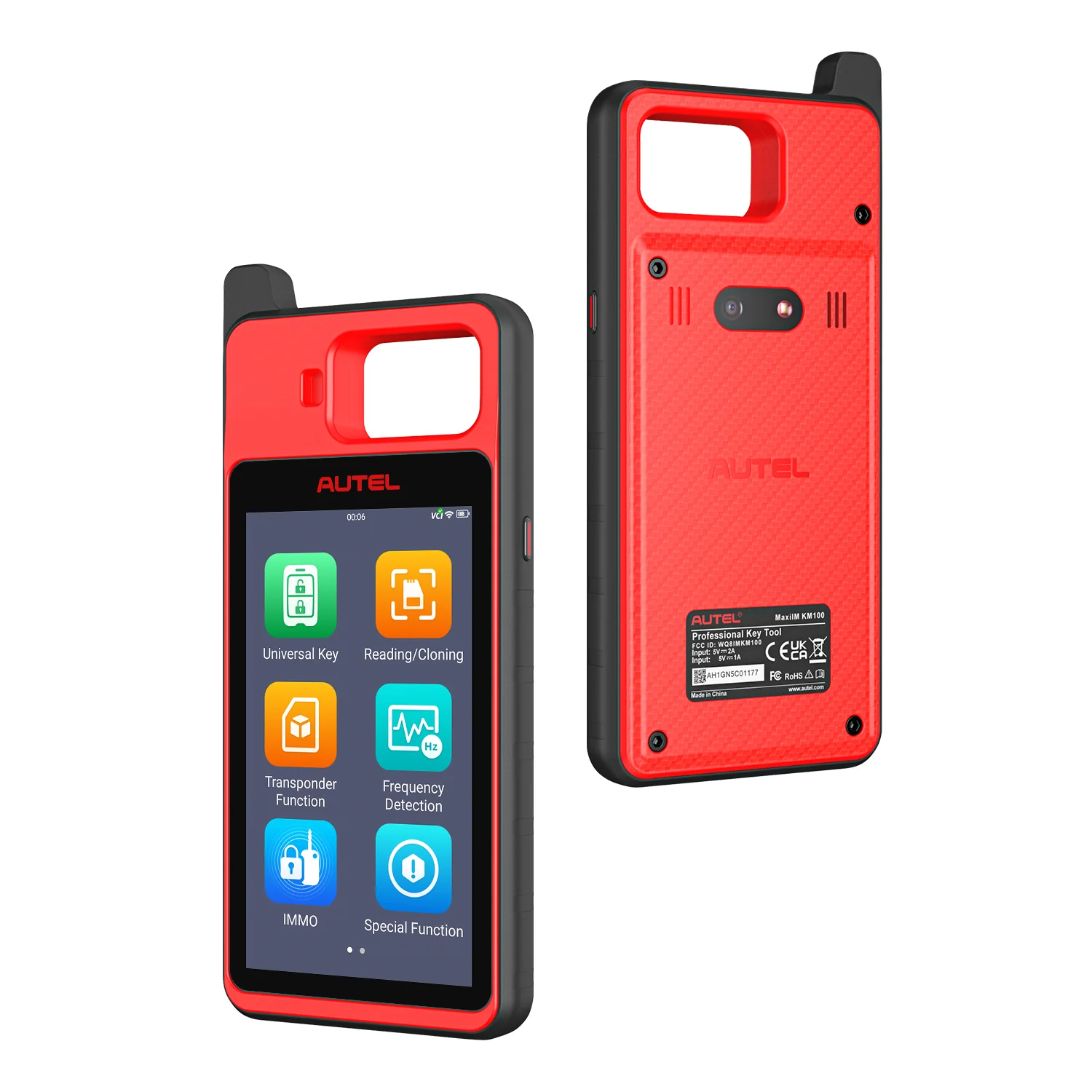

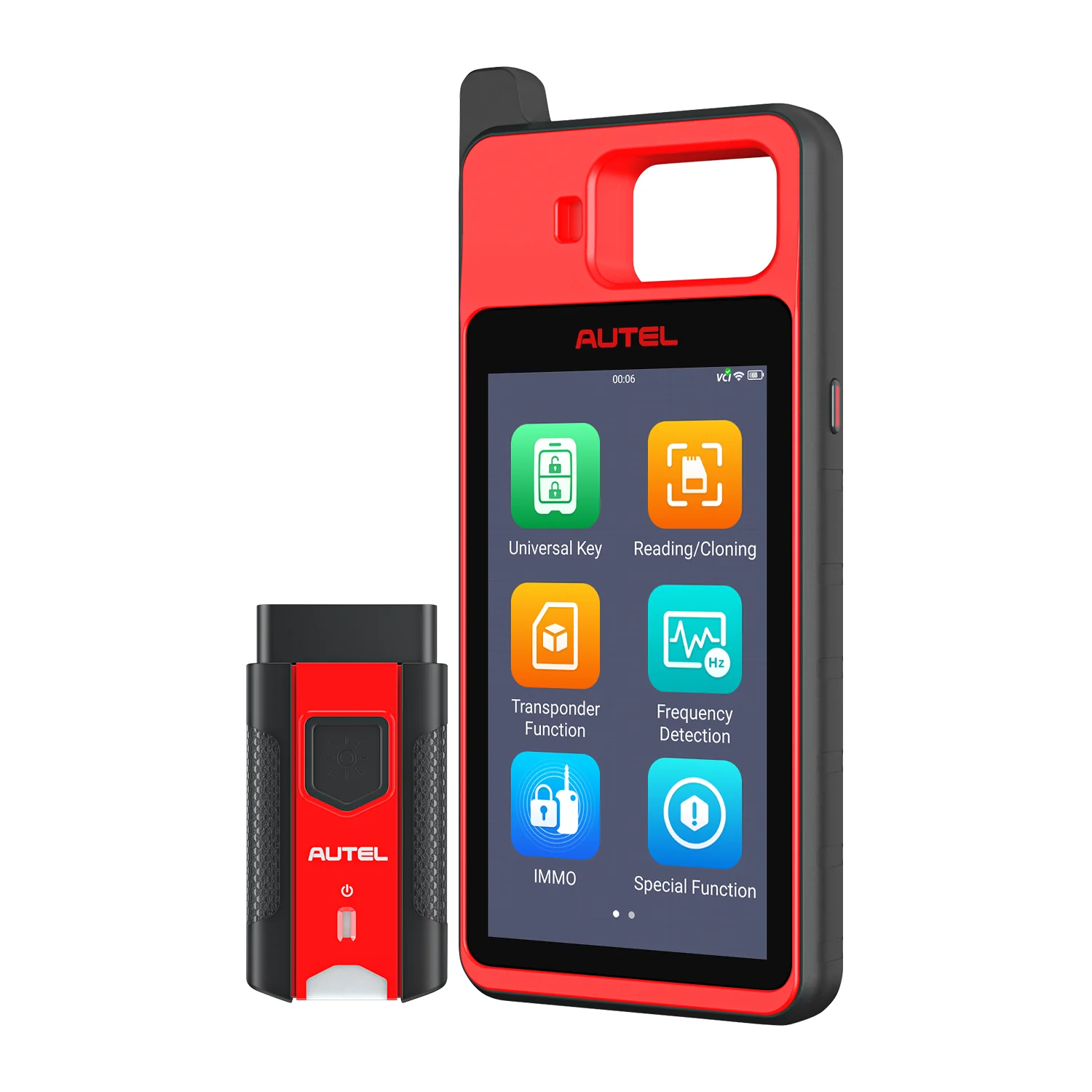

2026 Newest Autel MaxiIM KM100
The Autel MaxiIM KM100 (2026) redefines automotive key programming with its intelligent Android tablet design, offering advanced transponder cloning, IMMO coding, and smart key replacement for 700+ vehicle models. Designed for locksmiths and technicians, this all-in-one kit combines cutting-edge key generation with unmatched ease of use.
Autel KM100 Top Hightlights
- 60-Second Key Generation (Autel Universal Only)
- Programs Autel’s IKEY universal key as smart key replacement for more than 700 vehicles
- Extensive IMMO Key programming coverage including BMW, Volkswagen, Honda, and General Motors
- Chip Read & Write, Cloning and Frequency Detection
- Key Renewal: Supporting 36 Vehicle Makes
- Transponder Editing: Supporting 20 Categories
- Dual-Band, High Frequency Transmitter 315m/434m or 868m/915m Supporting Certification Requirements of Various Regions
- Supporting PLC V200
NASTF SDRM Compliance for North America
Autel is integrating the NASTF Secure Data Release Model (SDRM) validation protocol into supported key and immobilizer programming tools used in North America.
- Applicable Products: Autel MaxiIM KM100, IM508 Series and IM608 Series.
- Applicable Region: This requirement applies when the device is used under a North American IP address.
- Implementation Schedule: KM100 is scheduled to enable SDRM validation beginning September 1, 2026. IM508 and IM608 Series devices will be updated in subsequent phases.
- User Registration Required: Eligible key and immobilizer programming functions may require the end user to maintain an active NASTF SDRM account.
NASTF SDRM registration is not included with the purchase of this Autel device. The end user must apply, pay and renew the SDRM qualification directly through NASTF. All eligibility requirements, fees and approval decisions are independently managed by NASTF and are not controlled by Autel or the seller.
Do I need a NASTF SDRM account?
For certain security-related key and immobilizer programming functions in North America, an approved and active NASTF SDRM account may be required.
Is the SDRM account included with the device?
No. The SDRM account must be registered and maintained separately by the end user through the official NASTF platform.
Learn more from the Autel SDRM Resource Center
Advanced IMMO Functions
- Key Learning via OBD for 90% Vehicles
- Generate Simulator Key (KM100 as Emergency Key)
- Smart Remote Learning / Key Learning
- IMMO Data Backup / Restore
- Key Generation / Program a Smart Key
- All Key Lost / Add a Key
- Read PIN / Password Calculation
- IMMO ECU Reset / Adaptation / Refresh / Coding
KM100 Vehicle Compatibility
- AutoVin vehicle identification to ensure accuracy
- Simple Operation, Guided User Instructions, Easy To Use
- Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
- Supporting 8 Key Series And 37 Models
- Covering The Top 100 Selling Models In North America For The Last 10 Years
KM100 VS IM508S VS IM608 PRO II
Superior Hardware Configualtion
- Display:5.5-inch screen with 1280 x 720 resolution
- CPU:Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
- OS:Android 9.0
- Memory:2GB RAM/ 64GB on-board memory
- Camera:8 Megapixels
- VCI:MaxiVCI V200
- Connection: Wi-Fi, Bluetooth 5.0, USB 2.0 type C
- Battery:4950mAh
MaxiIM KM100 Specifications
| Dimensions (WxHxD) | 200mm(7.9") x 89 mm (3.5") x 22mm (0.87") |
| Weight | 352.7g (0.8 lb) |
| Screen | 5.5-inch screen with 1280 x 720 resolution |
| Processor | Rockchip PX30 (4x ARM Cortex-A35 1.5GHz) |
| Operating System | Android 9.0 |
| Memory | 2 GB RAM / 64GB on-board memory |
| Camera | 8 megapixels |
| Connection |
|
| Battery | 4950mAh lithium-polymer battery |
| VCI | v200 |
| Input | 5V / 2A |
| Sensor | Ambient light sensor |
| Audio Input / Output |
|
| Operating Temp | -10 to 45°C (14 to 113°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Function | Autel MaxiIM IM508 | Autel MaxiIM IM608 | Autel MaxiIM KM100 |
| Universal Transponder & Key Generation | No | No | Yes |
| Transponder Simulation Editing & Cloning | No | No | Yes |
| Ignition Coil Detection | No | No | Yes |
| Vehicle Diagnostics | Yes, Basic function | Yes | No |
| Vehicle Service Functions | Yes | Yes | No |
| IMMO Function via Programmer | Yes | Yes | No |
| Frequency Reading | Yes | Yes | Yes |
| Frequency Detection | Yes | Yes | Yes |
| Key Unlocking/Key Renew | Yes | Yes | Yes |
| Immobilizer Data Processing | Yes | Yes | Yes |
| IMMO in Open OBD mode | Yes | Yes | Yes |
Autel MaxIM KM100 KIT Packing List
